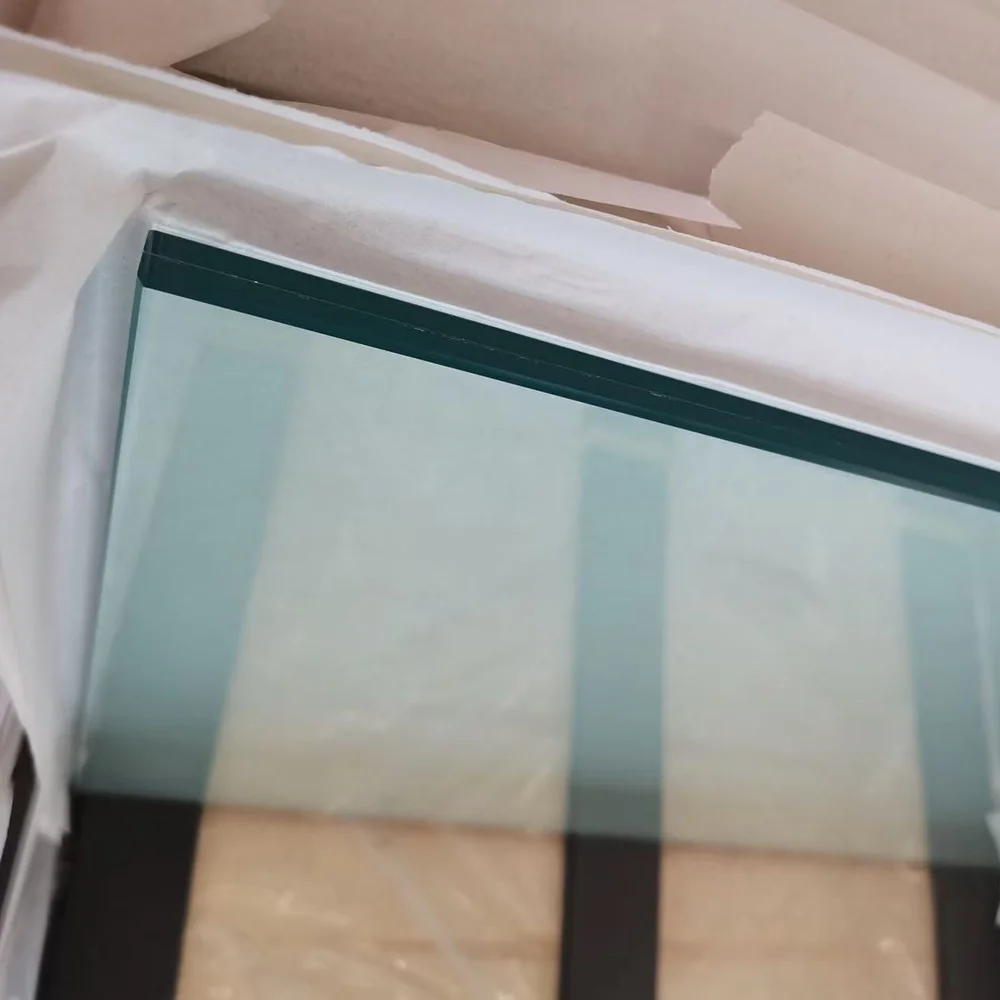

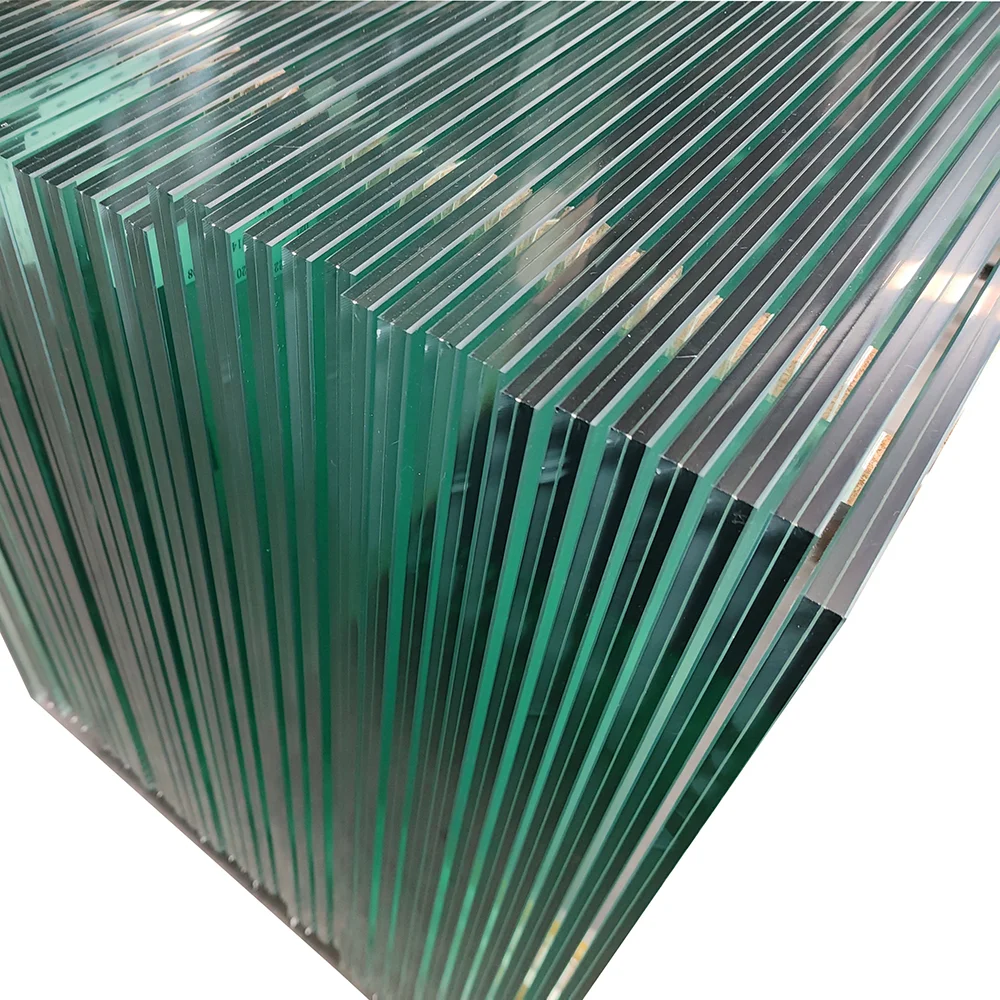

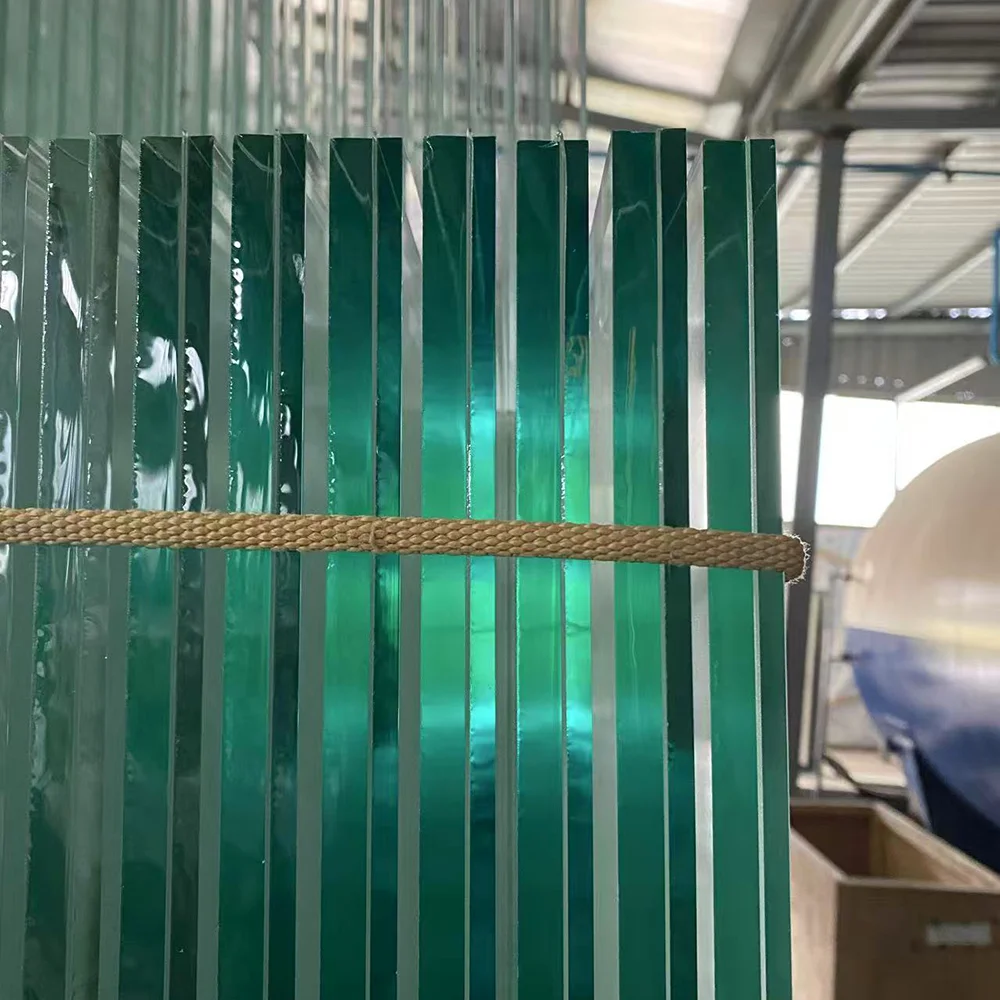

Laminated Glass
China Laminated Glass
Manufacturer
Laminated Glass
Product Details
| Application | Glass thickness + Tnterlayer + Glass thickness | Total thickness |
| Indoor partitions, furniture glass | 3+0.38PVB+3 | 6.38mm |
| Residential windows, shower enclosures | 5+0.76PVB+5 | 10.76mm |
| Commercial curtain walls, sunrooms | 6+1.14PVB+6 | 13.14mm |
| High-rise buildings, blast resistance requirements | 8+1.52PVB+8 | 18.52mm |
Laminated Glass Interlayer
| Application | Interlayer Thick | Interlayer | Features |
| General construction, residential | 0.38mm、0.76mm、1.14mm、1.52mm | PVB interlayer | Cost-effective, good light transmission |
| Blast resistance, typhoon-prone areas | 1.52mm、2.28mm、3.04mm | SGP interlayer | High strength, tear-resistant |
| Decorative glass, PV modules | 0.5mm~1.5mm | EVA interlayer | Moisture-heat resistant, dyeable |
| Bridges, glass flooring | ≥1.52mm | Ionomer interlayer | Ultra-high strength, weather-resistant |
Quality Standards
Glass Substrate
* Type: Must be tempered glass or heat-strengthened glass, compliant with GB 15763.2-2005 (China) or EN 12150 (EU).
* Appearance: No scratches, bubbles, stones, mildew, or other defects;
* Flatness: Surface curvature ≤0.2%
Interlayer
* Type & Thickness:
PVB: Common thicknesses 0.38mm, 0.76mm, 1.52mm; compliant with ASTM D2192.
SGP: Tear strength 5x that of PVB, suitable for high-safety applications (e.g., blast-resistant glass).
EVA: Good moisture-heat resistance but weaker adhesion; mostly used for decorative glass.
* Light Transmittance: Clear PVB ≥85% (GB/T 5137.1-2020).
Edge Seal
* Butyl seal: No bubbles or gaps; seal width ≥3mm.
* Secondary seal: Polysulfide or silicone sealant must fully cover the spacer bar without cracks.

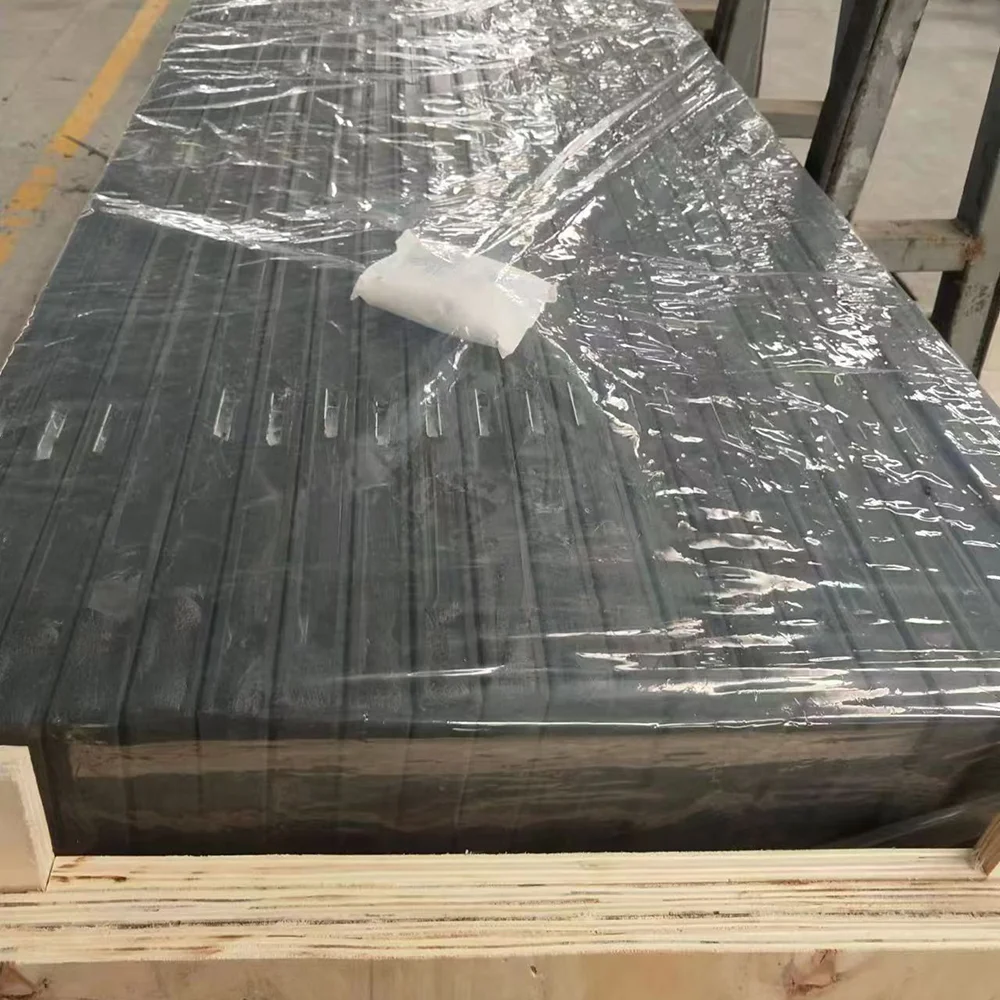

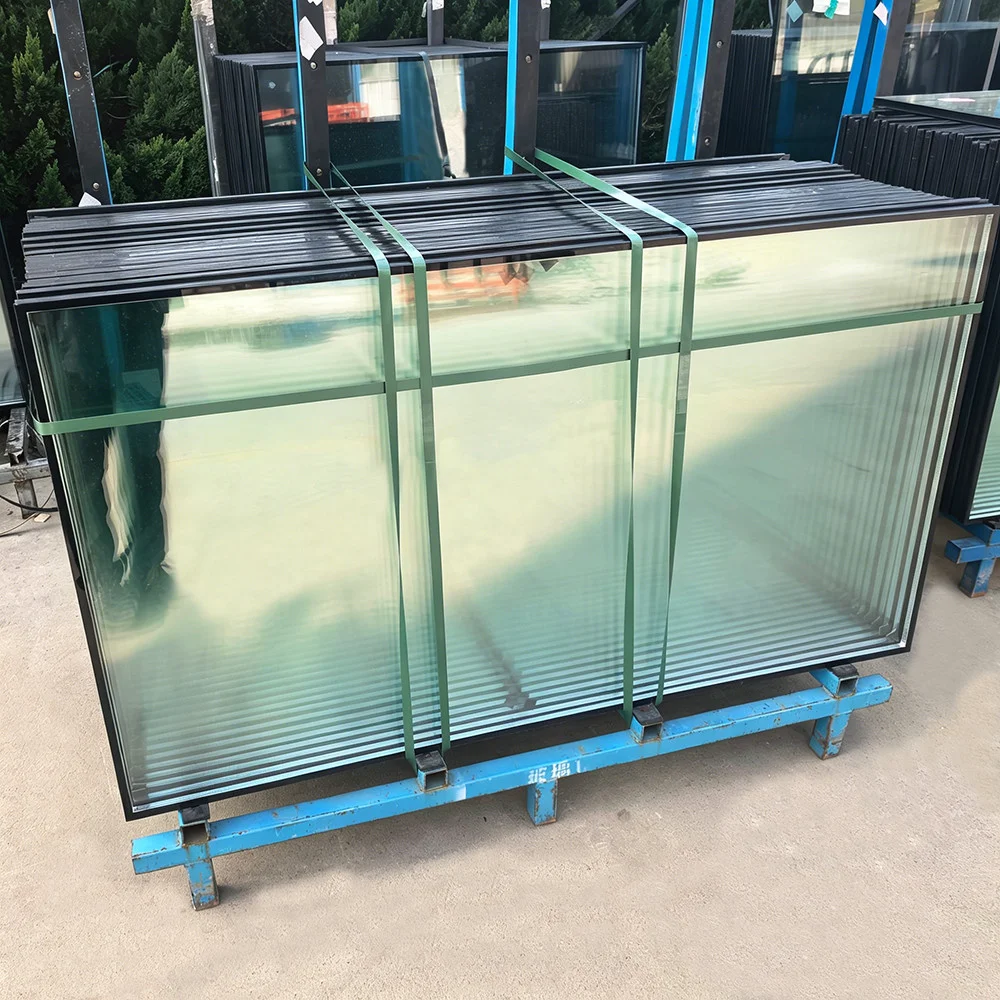

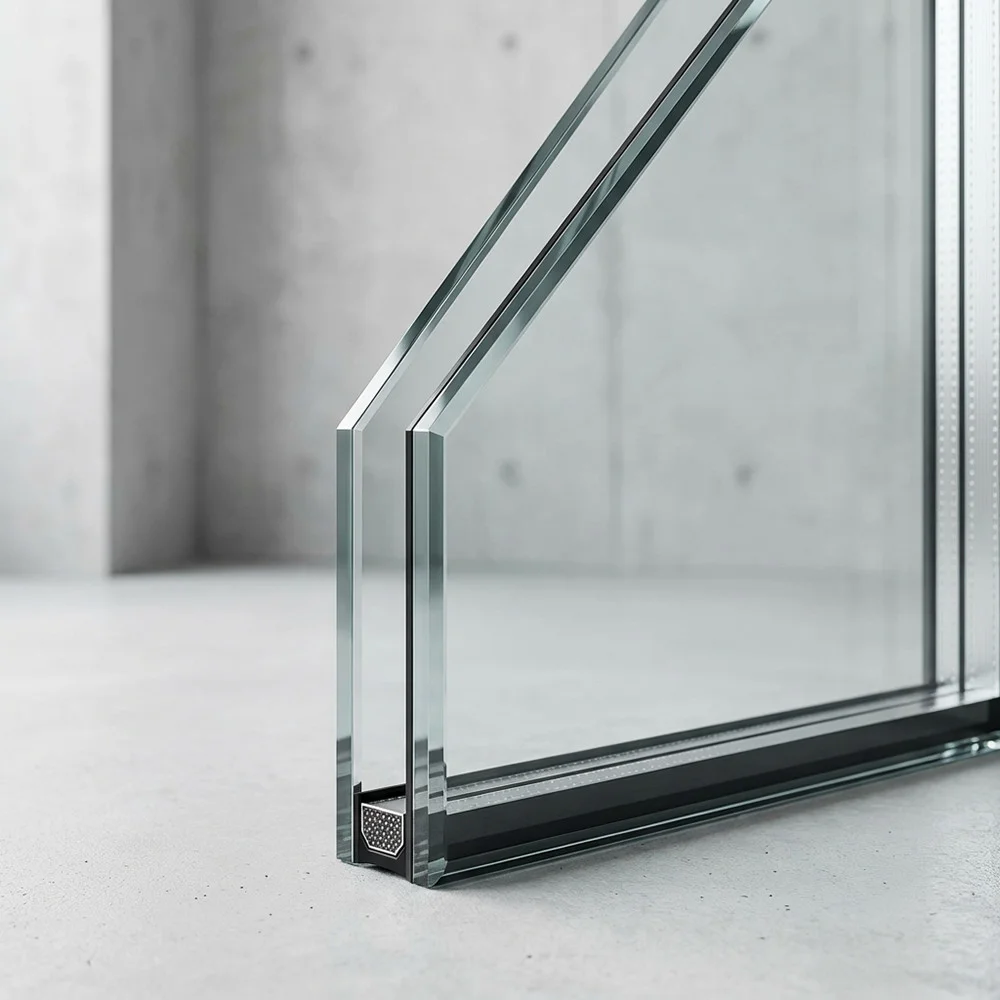

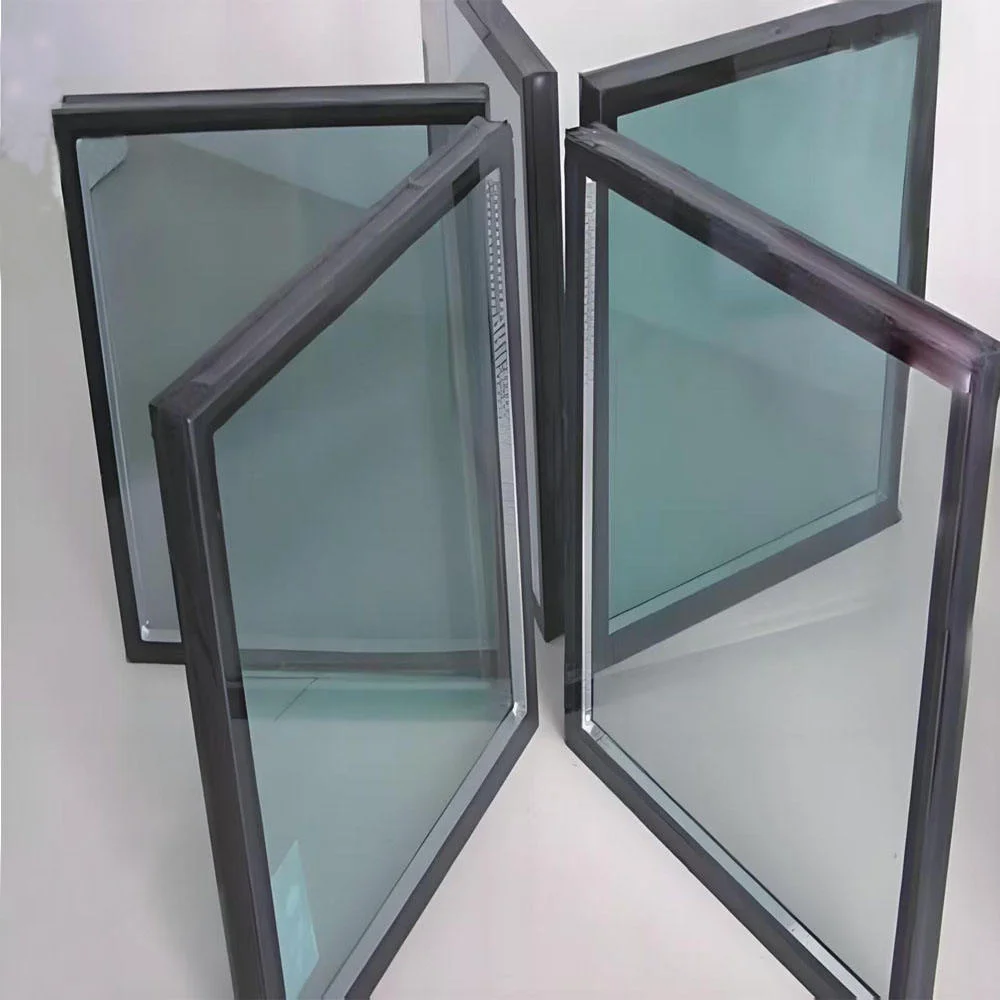

Insulated Glass
Glass Thickness: 5mm, 6mm, 8mm
Glass Type:
Float raw glass+Float raw glass
Tempered glass+Tempered glass
Tempered glass+Float raw glass
Low E Glass+Tempered glass
| Application | Glass Thickness+ Air Space+ Glass Thickness | Total thickness | Features |
| Residential doors and windows | 5+9A+5 or 6+12A+6 | 19-24mm | Cost-effective, meets basic sound and thermal insulation needs |
| High-rise buildings, curtain walls | 6+12A+6 or 8+16A+8 | 24-32mm | High wind load resistance, strong safety |
| Sunrooms, extremely cold regions | 5+20A+5 or 6 Low E+12A+6 | 30mm+ | High thermal insulation, anti-frost |
| High-end soundproofing requirements | 6+12A+6+12A+6 (Three-glass two-cavity) | 42mm+ | Dual air cavities, excellent sound insulation |
Selection Considerations
Air cavity thickness matters:
• 12mm–16mm is optimal for sound and thermal insulation. Too thick may cause gas convection and reduce performance.
Glass thickness vs. panel size:
• Large glass panels (e.g., curtain walls) require increased single-pane thickness (e.g., 8mm, 10mm) for better wind load resistance.
Special functional glass:
• For Low-E glass or argon-filled units, air cavity ≥12mm is recommended for optimal performance.
